Continuous Ship Loader for Bulk Materiel Conveying

I want to make an inquiry

Product Description

Basic Info.

Model NO.

Certification

GS, RoHS, CE, ISO9001

Transport Package

Roro

Specification

Trademark

super-above

Origin

Shanghai, China

HS Code

8705109100

Production Capacity

1000PC/Year

Product Description

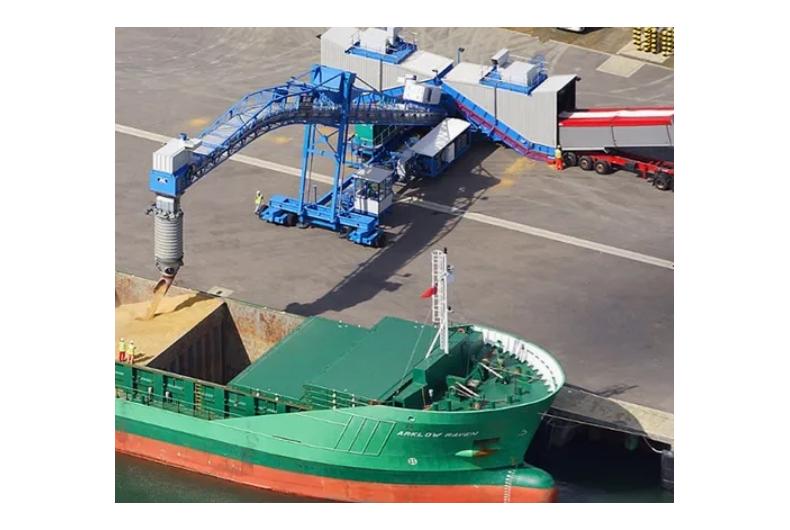

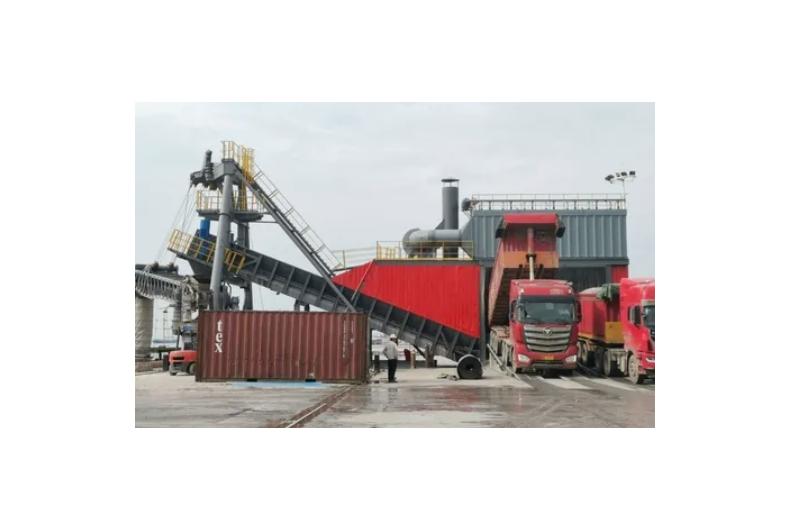

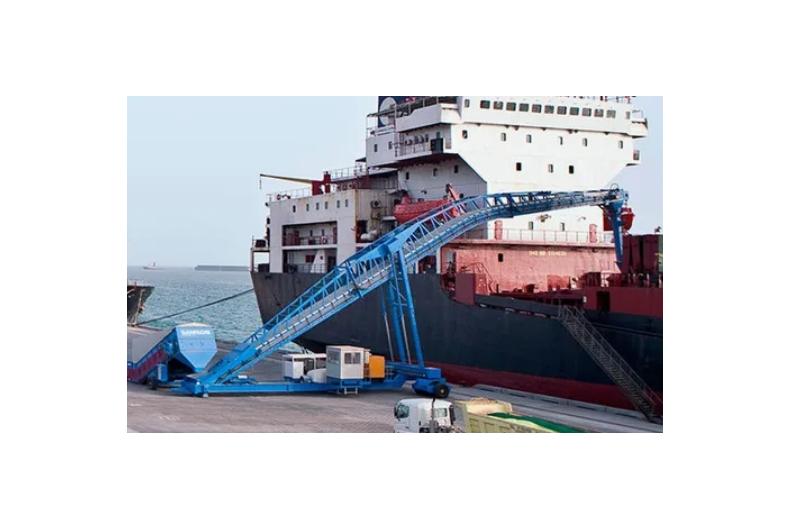

Continuous Ship Loader for Bulk Materiel Conveying

Feed Conveyor Specification
1		Main Technical Data
		Rating Productivity			800t/h
		Max Productivity			1000t/h
		Max Wind Speed			20m/s
		Max Support Pressure			<30T
		Pitch Angle			1.5~20°
		Diesel			None
		Motor			460V,60HZ		urban electricity is feasible.
2		Walking Mechanism
		Wheel Diameter			800mm
		Wheel Type			Solid Tyre
		Whole machine movement			Without power supply		forklift or loader is required)
		Rotary Movement			Rotate and drive along the feeding point
3		Belt Conveyor(Fix and Stretch)
		Width			1200mm
		Speed			2.5m/s
		Power			37KW		Temporary
		Tape			Patterned
4		Pitching part
		Pitching Cylinder			F=15t S=2000		1 set

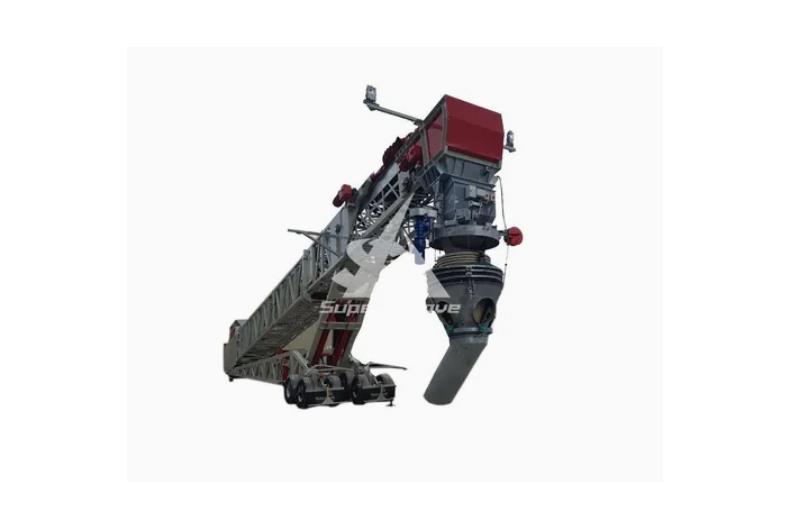

	Terminal Ship Loader Specification
	1		Main Technical Data
			Rating Productivity			800t/h		(Coal about 800,grain about 500)
			Max Productivity			1000t/h
			Max Wind Speed			20m/s
			Max Support Pressure			<30T
			Pitch Angle			1.5~16°
			Diesel			None
			Motor			460V,60HZ		urban electricity is feasible.
	2		Walking Mechanism
			Wheel Diameter			800mm
			Wheel Type			Solid Tyre
			Whole machine movement			Without power supply		forklift or loader is required)
			Rotary Movement			Rotate and drive along the feeding point		Main movement and rotary movement jacking shift
			Drive Power			7.5KW×2(Temporary)
			Suggested Speed			0-20m/min
	3		Belt Conveyor(Fix and Stretch)
			Width			1200mm
			Speed			2.5m/s
			Power			37KW		Temporary
			Tape			Patterned
	4		Telescoping System
			Telescoping Speed	7m/min
			Telescoping Style	gear rack
			Telescoping Drive	triad gearmotor
	5		Pitching part
			Pitching Cylinder	F=30t S=2000				2 sets
	6		Chute	NO

Thanks very much for your interest in our ship loader! We are a professional manufacturer in grabs, funnels, spreaders, cranes and port machinery with rich experiences,advanced technologies,and a mature after-service and maintenance team,Super-above would surely be your best choice with the most competitive products and services.
